Pixotope Body Pose Estimation

PIXOTOPE

Try Pixotope Talent Tracking

SOFTWARE TODAY

Let your on-screen talent interact with the virtual environment, with Pixotope real-time talent tracking system.

Harnessing TalenTrack and Body Pose Estimation technology, our full body pose tracking tool is designed to make your virtual production easier and supporting creativity in productions.

Try our unique talent tracking tracking system for free: book a demonstration today.



AI-driven body pose

Precisely tracks the body and limbs of on-screen talent through a detailed 3D skeletal structure using AI-driven computer vision algorithms.
Cost-effective, streamlined talent tracking

Enjoy the advantages of tracking one talent precisely without the costs and complexities of additional hardware.
Track multiple talents in 3D space

With affordable network-connected cameras and clever processing software, our TalenTrack technology makes talent tracking cost-effective and practical.
Automatically track talents from all angles

Pixotope’s talent reality tracking system allows you to track talents from all angles, with no input from the camera operator.
Scale up your system as required

Our system employs a minimum of three cameras to track a specific volume. The tracked area can be increased in a very flexible way by adding more cameras to cover for tracked area in any shape, including long aisles and non circular and rectangular stages.
Adapt to any production needs

Define areas that should be left out of the detection zone and a tridimensional tracking shape to ensure that, from all the 3D space covered by the witness cameras, only the volume of interest will track the talent.

TALENTRACK

FEATURES

CREATE REALISTIC VIRTUAL SHADOWS

FOR LED FLOORS

Natural shadows often disappear on LED floors due to the light they emit, creating an unnatural look. This is where accurate body pose data becomes crucial.

Our TalenTrack, with its precise tracking, solves this problem for both LED floors and virtual sets where a "good key" isn't achievable, effectively killing natural shadows in those scenarios.

By knowing the talent's position and posture in real-time, TalenTrack adds realistic virtual shadows that seamlessly blend the virtual world with the real, for a truly immersive experience.

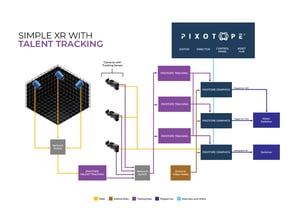

Diagram_ Simple XR with TalenTrack (1)

LET YOUR TALENT MOVE FREELY

WITHIN THE VIRTUAL ENVIRONMENT

Our system seamlessly integrates actors and real objects into your virtual studio or green screen, allowing for natural movement and interaction with virtual elements.

Imagine a layered stage where actors can walk in front of, behind, and even cast shadows on virtual objects – all thanks to Pixotope's advanced tracking technology.

No trackers or markers are needed on the talent, who can maintain freedom of movement, act naturally, and focus on delivering the story.

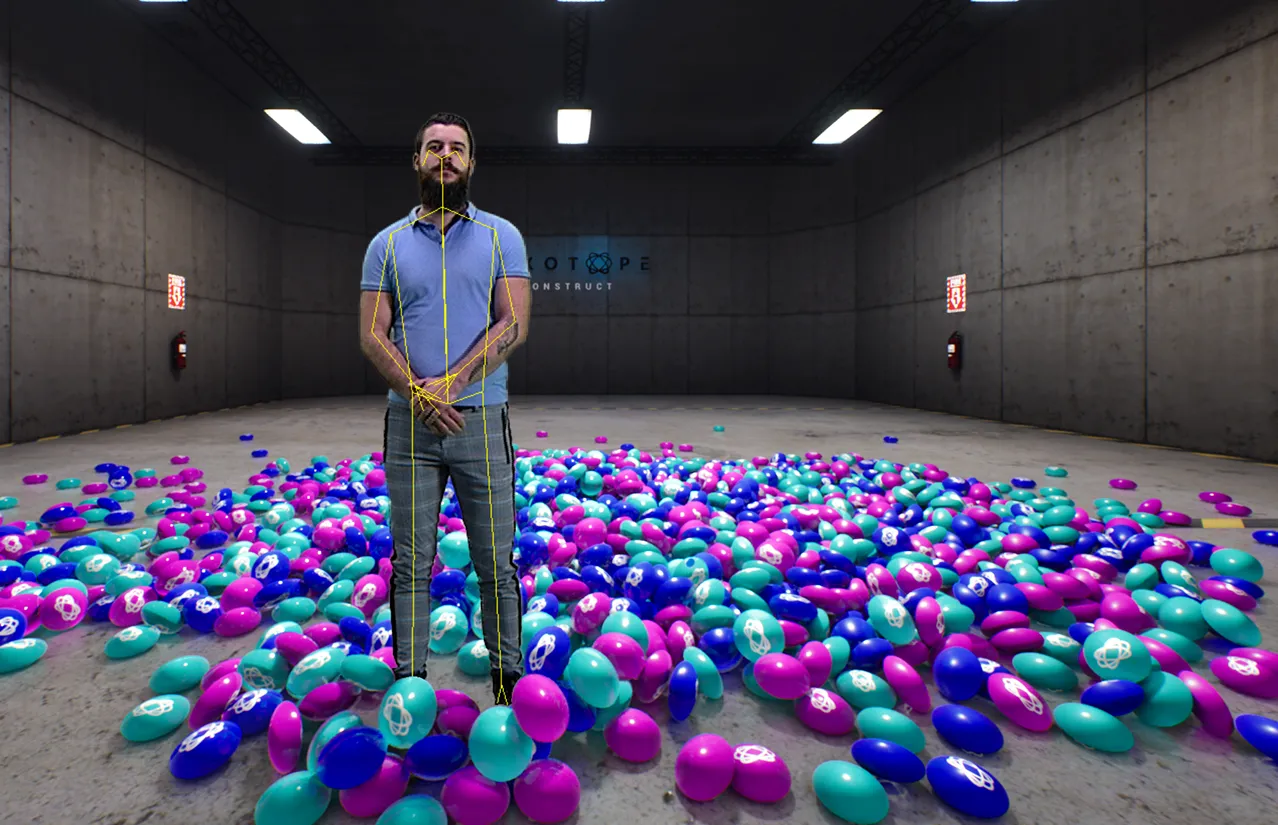

talent_tracking_BPE

INTERACT SEAMLESSLY

WITH VIRTUAL OBJECTS

With Pixotope talent tracking system, your talent can effortlessly touch, kick, and manipulate virtual objects as if it's second nature.

The secret? Precise talent tracking and limb movement monitoring. This technology enables you to know the exact location of talents and accurately track their every move, allowing them to interact within the environment seamlessly.

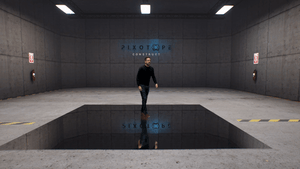

ezgif.com-gif-maker (1)

VIRTUAL REFLECTIONS

THAT MOVE WITH THE TALENT

Realism is the name of the game in virtual productions. One of the most important aspects of realism, and one of the hardest to nail correctly, is talent reflections.

Whether you work in a green screen environment or an LED stage, creating accurate reflections is a hard task.

Talent tracking answers a big part of this task. Accurate talent position information allows you to make sure the reflections will stay with the talent regardless of where he is on stage and maintain realism throughout the show.



ezgif.com-gif-maker





Choose between

Body Pose Estimation and TalenTrack technology


Pixotope Talent Tracking system is available with either BPE or TalenTrack.

Try both and get the best solution for you, with a free demo.

Number of talents tracked
Required body visibility
In/Out shoot
Tracking technology
License
BPE
1
full body
full body in shot required
Through-The-Lens, 2D plane
Included with VS/AR and XR
TalenTrack
5
partial body
tracking continues if talent is out of camera shot, as long it stays in tracked volume
standalone tracking separated from the camera tracking. 3D volume
separate license

IMMERSE YOURSELF IN OUR VIRTUAL PRODUCTION SOLUTIONS TRY PIXOTOPE TODAY

BOOK A DEMO

FAQs

What is talent tracking?

Talent tracking is a method of identifying the position and pose of on set talent, without the need for motion capture (mocap) suits or other equipment attached to or worn by the talent.
How does talent tracking work?

Pixotope offers two methods of talent tracking. Included as standard in all Editions of Pixotope Graphics is the Body Pose Estimation feature. This version of talent tracking uses Artificial Intelligence to process the TTL (through the lens) image to establish the position and pose of the on set talent.
For more complex scenarios, for example with several people on set, we are able to offer a standalone solution that processes the image from 3 or more “sensor cameras” placed around the studio.
Why does virtual production need talent tracking?

Talent Tracking both makes Virtual Production easier, but also enables more creativity in productions. Talent Tracking enables the onscreen talent to interact with the virtual environment, while also enabling us to move and auto-size the compositing plane, making it possible to easily manage elements such as shadows and reflections and create hyper-realistic virtual sets.
What is Body Pose Estimation (BPE)?

Body Pose Estimation (BPE) is AI-driven system precisely tracks on-screen talent's body and limbs through a detailed 3D skeletal structure.

Operating on analyzed video feeds, BPE ensures a smoother production experience
without extra equipment, allowing flexible movement on a green screen set.

Moreover, BPE enhances realism by accurately rendering shadows, reflections, and footprints, empowering talent interaction with the virtual environment through physics, trigger boxes, hand gestures, and clicker controls for pick-up and placement logic.
